Irrigation/aspiration with Safety Design
Oertli I/A instruments make irrigation and aspiration even safer than before. The Quick Tips with Safety Design have an extended shaft length, to enable better sub-incisional access. The reduced aspiration opening creates better occlusion power, increases safety during aspiration and provides for optimum stability of the anterior chamber. The well-thought-out positioning of the aspiration opening prevents unintentional gripping of the capsule bag. Especially in combined application with SPEEPMode, Quick Tips offer the highest degree of safety. In addition, they have a clever snap lock, which enables fast switching of tips in the sterile field.
Advantages of I/A with Safety Design
- Absolutely stable anterior chamber
- Easy sub-incisional accessibility
- Occlusion achieved quickly
- High safety standard during capsule cleaning
- Highly efficient in combination with SPEEPMode
- Available from 1.6 mm up to 2.8 mm
Instruments and accessories
| I/A-handpiece bimanual, disposable | |
|---|---|

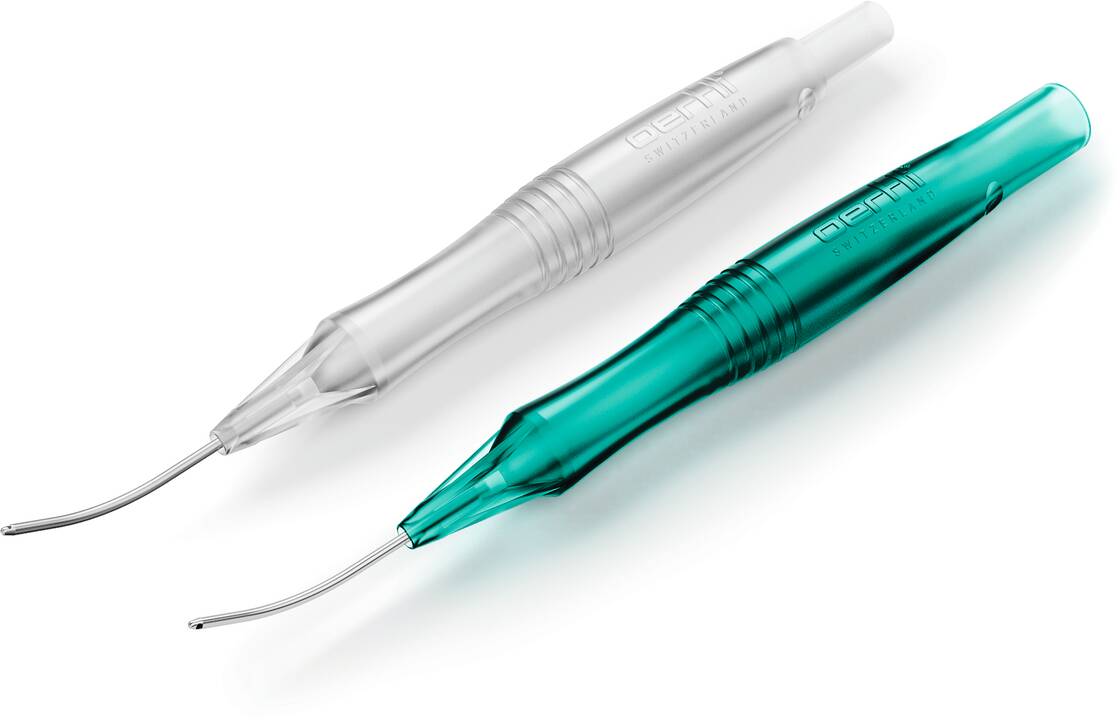

| VV650010 | I/A bimanual instruments set aspiration opening 0.30 mm, irrigation opening 0.50 mm, diameter 0.80 mm Sterile/single use, box of 10 |
| I/A-handpiece bimanual, reusable | |
|---|---|

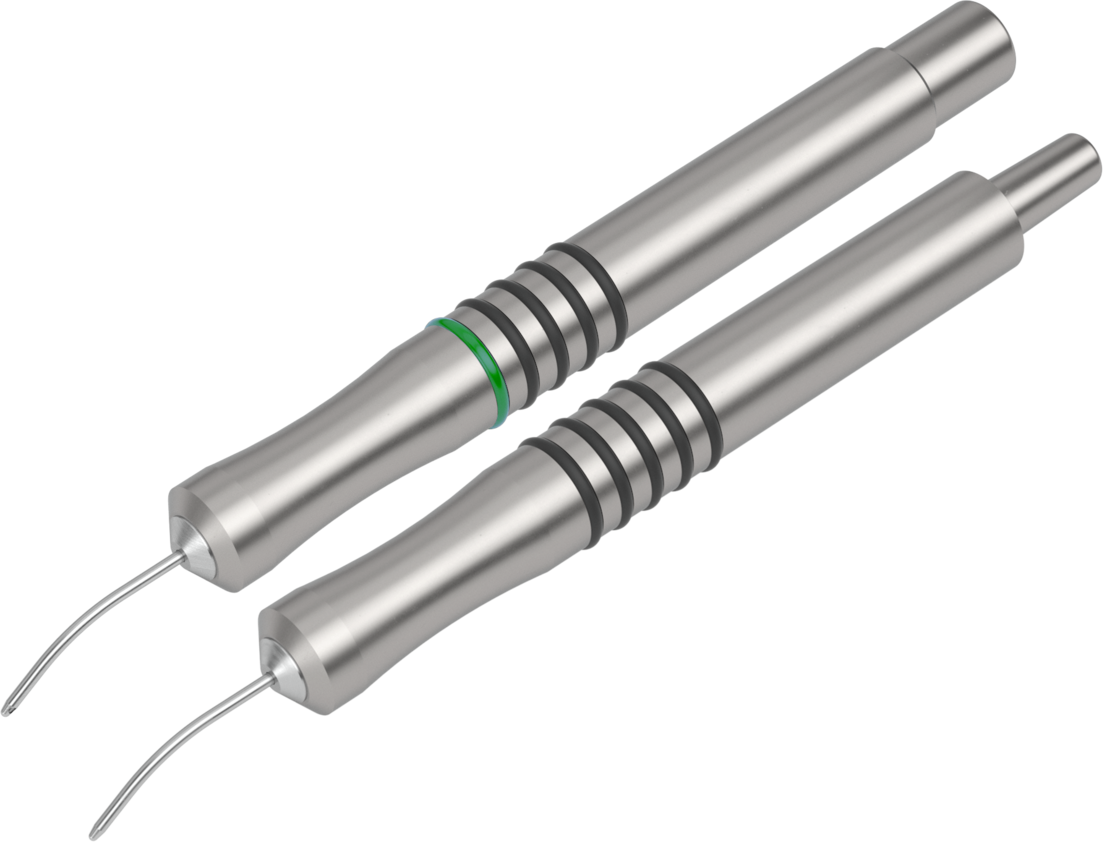

| VE654100 | I/A bimanual instrument kit, aspiration opening 0.30 mm, irrigation opening 0.50 mm, diameter 0.80 mm |
| VE654101 | I/A bimanual instrument kit, roughened tips, aspiration opening 0.30 mm, irrigation opening 0.50 mm, diameter 0.80 mm |
| VE654103 | I/A bimanual instrument kit, 23G aspiration opening 0.30 mm, irrigation opening 0.45 mm, diameter 0.62 mm |
| I/A-handpiece coaxial, reusable | |
|---|---|
| VE655000 | I/A hand piece "Qick Tip" titanium |
| VE603010 | Irrigation hand piece titanium with luer connection |
| VE655020 | Luer adaptor "Quick Tip", female |
| I/A Quick Tip-System coaxial, reusable | |
|---|---|
| VE655527 | “Quick Tip“ für I/A with sleeve, 45°, aspiration opening 0.25 mm, leg lenght 1.2 mm, for incisionen from 1.6-1.8 mm, SAFETY DESIGN |
| VE655525 | “Quick Tip” for I/A with sleeve, 45°, aspiration opening 0.25 mm, leg length 1.5 mm, for incisions von 2.2-3.2 mm, SAFETY DESIGN |

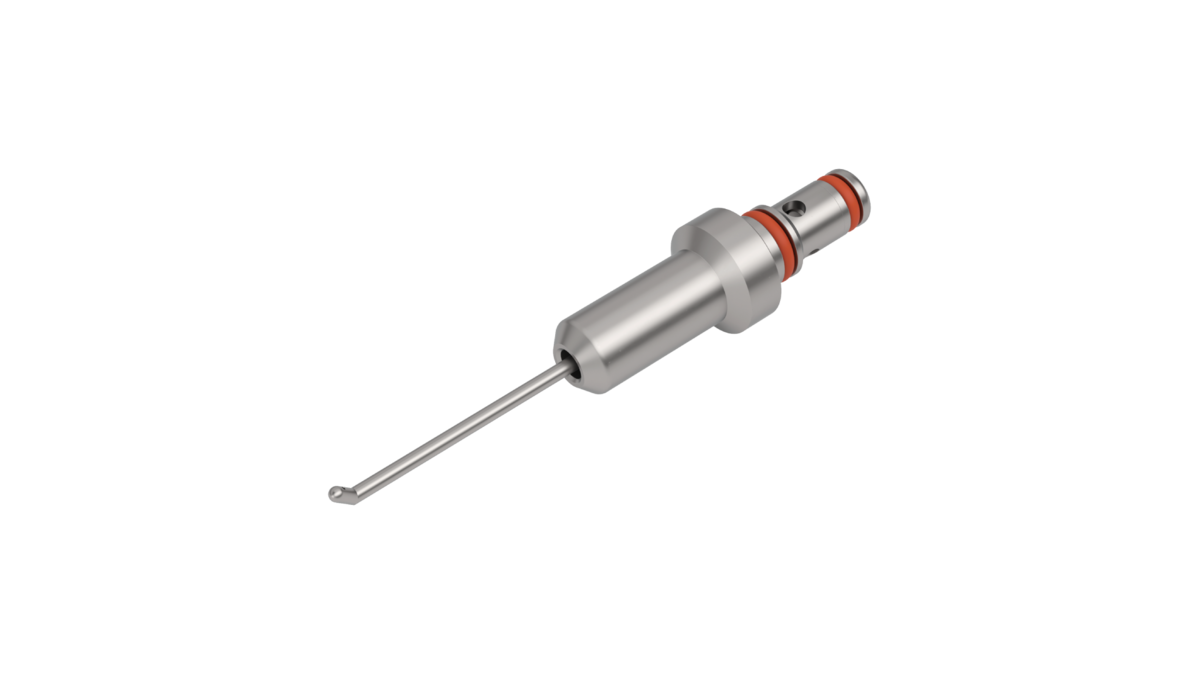

| VE655526 | “Quick Tip” for I/A with sleeve, 45°, aspriation opening 0.25 mm, leg length 2.1 mm, for incisionen von 2.2-3.2 mm, SAFETY DESIGN |

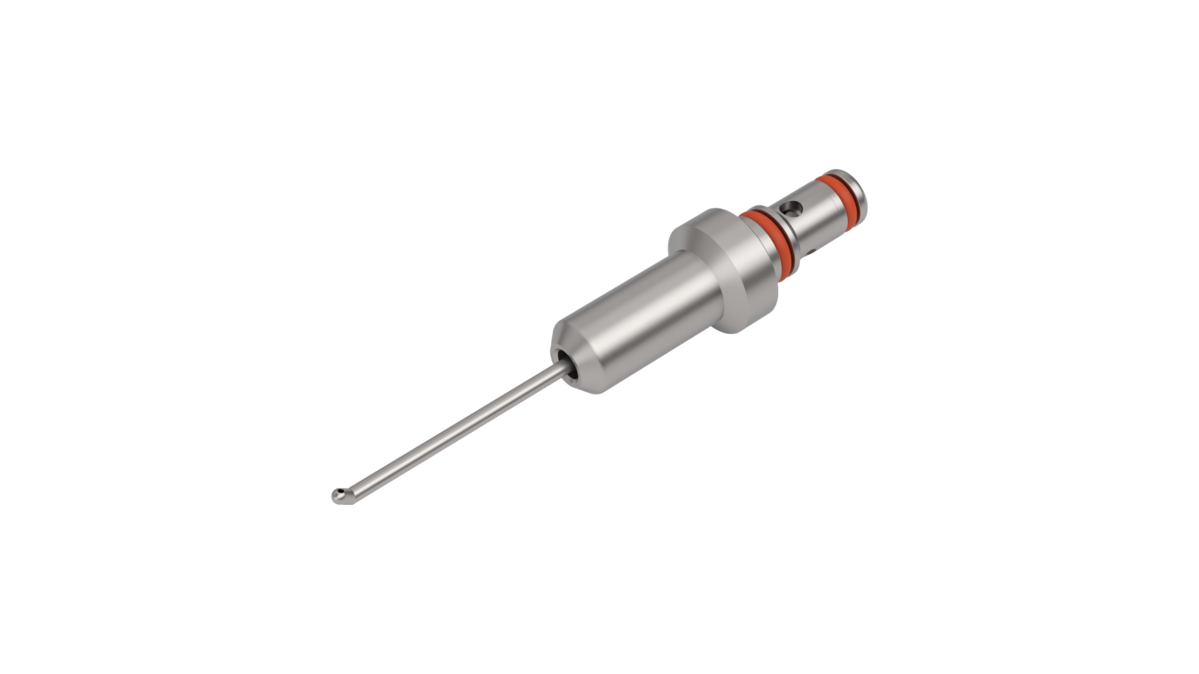

| VE655535 | “Quick Tip” for I/A with sleeve, 45°, aspiration opening 0.35 mm, leg length 1.5 mm, for incisionen from 2.2-3.2 mm |

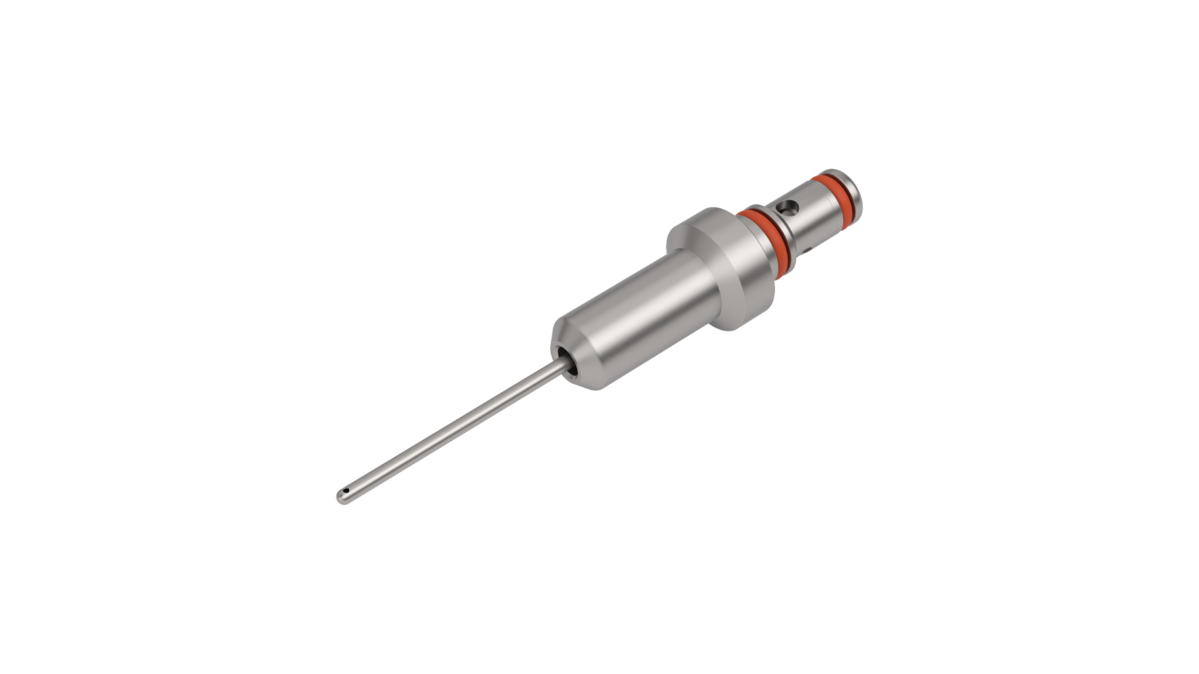

| VE655035 | “Quick Tip” for I/A with sleeve, straight, aspiration opening 0.35 mm, for incisions from 2.2 - 3.2 mm |

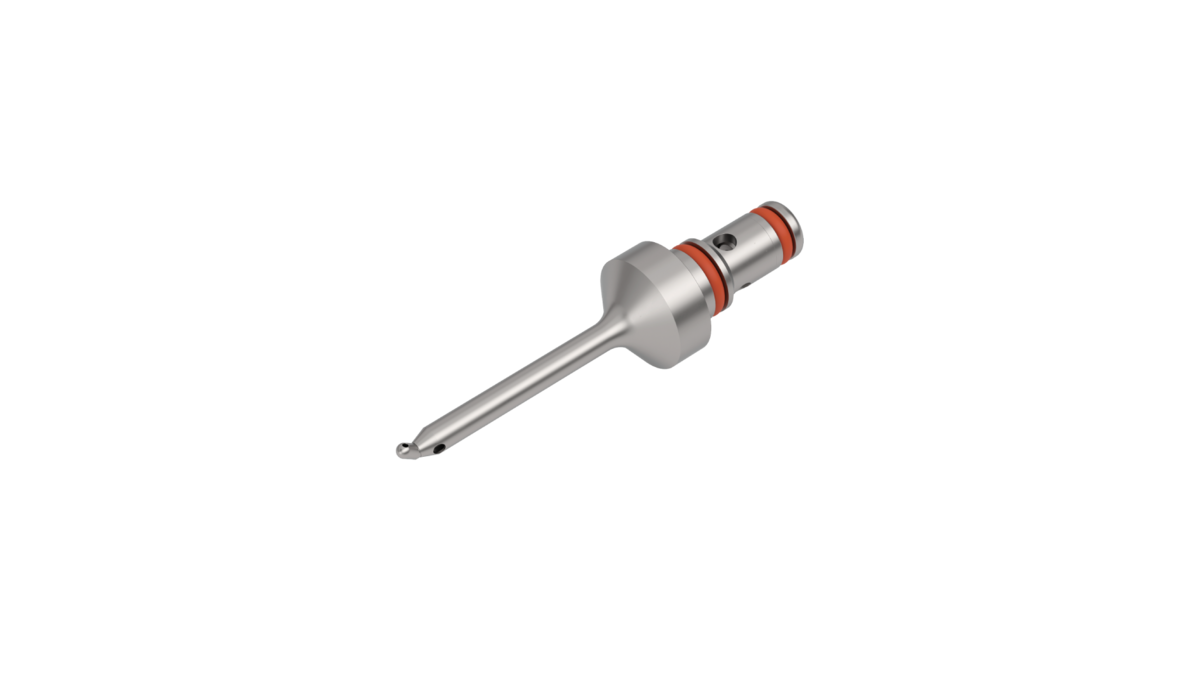

| VE655235 | “Quick Tip” for I/A sleeveless, 45°, aspiration opening 0.35 mm, leg length 1.5 mm, for incisions from 2.8 - 3.2 mm, diameter 1.80 mm |
| VV603231 | Irrigation sleeve for easyTip CO-MICS, silicone, grey |

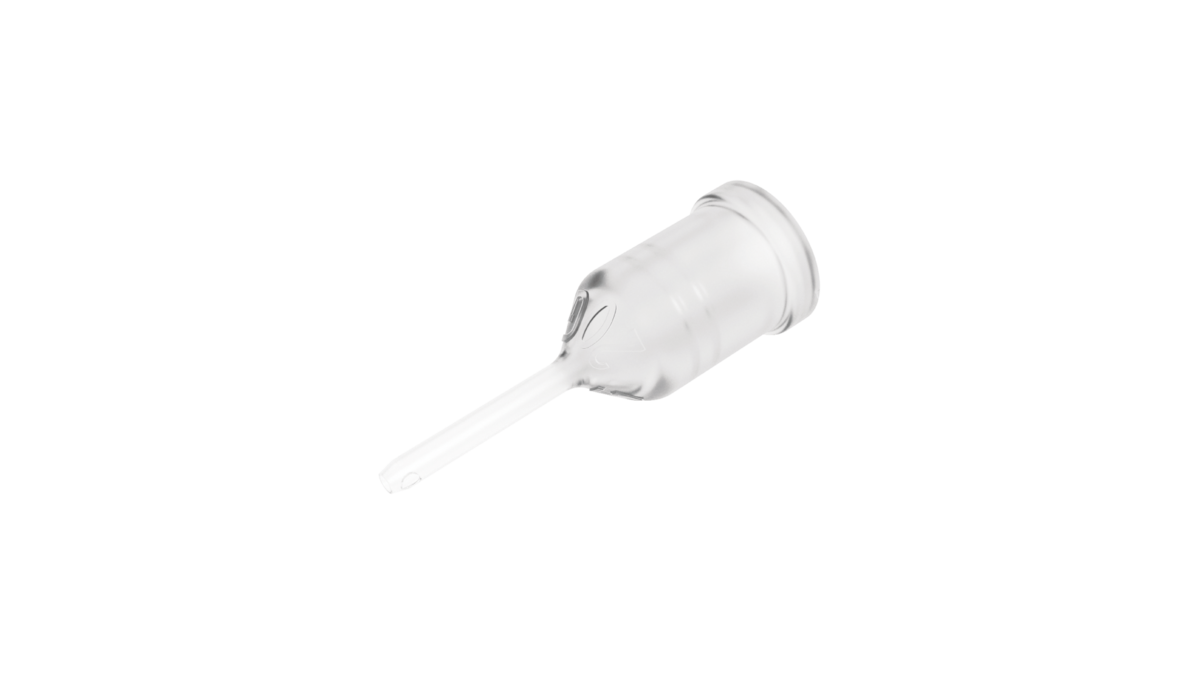

| VV603220 | Irrigation sleeve for easyTip 2.2 mm, silicone, transparent (for VE655035, VE655525, VE655526, VE655535) |

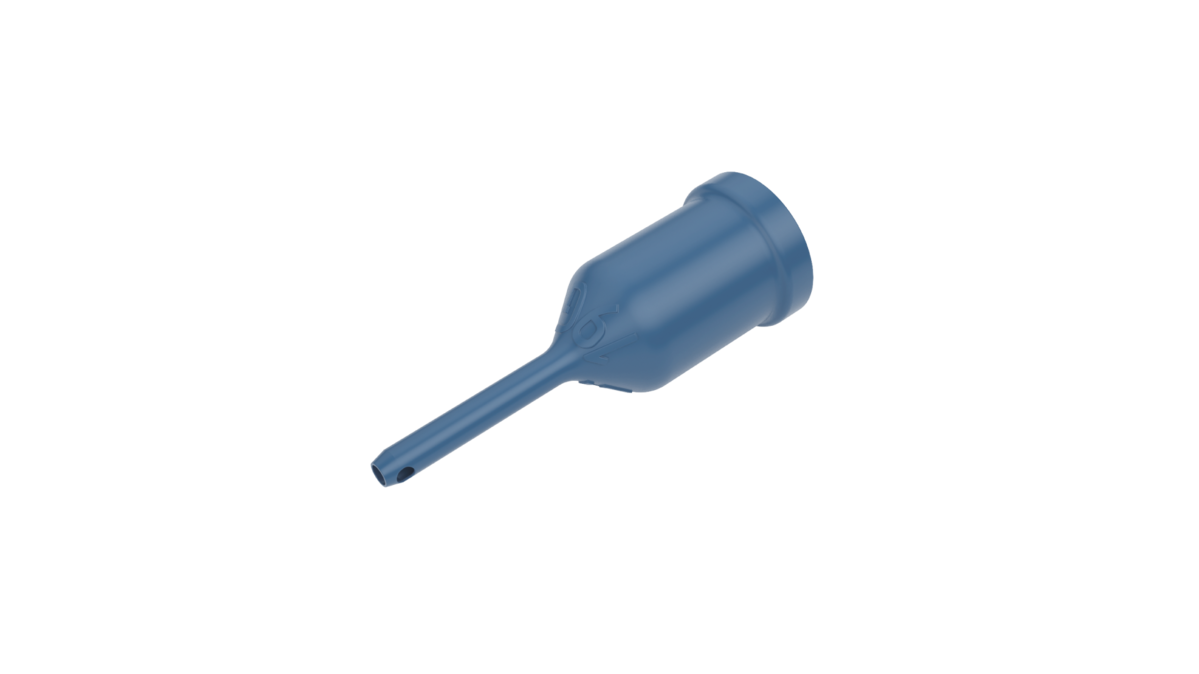

| VV603209 | Irrigation sleeve for easyTip 2.8 mm, silicone, blue (for VE655035, VE655525, VE655526, VE655535) |
